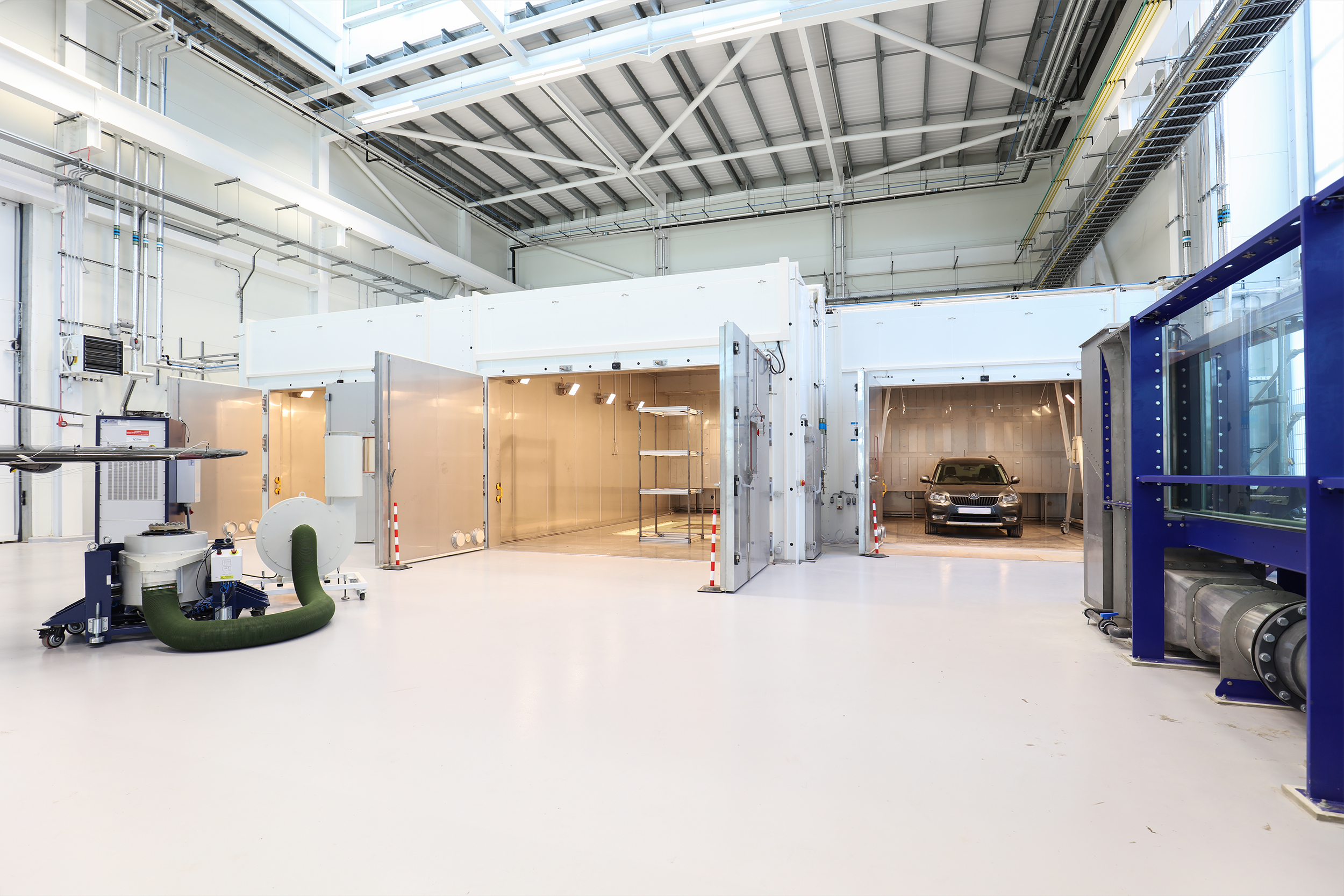

Climatic Test Rooms /
The climatic test room control system allows complex simulation programs to be created and executed. Set point and actual values of environmental conditions are recorded and available for future analysis. The chambers can be operated with or without personnel inside.
Test Room Dimensions
| Climatic Test Room |
Internal Dimensions (h x w x d) |
| Room 1 (including Wind Fan) |
3m x 5m x 8m |
| Room 2 (including Multi-Axis Shaker Table (MAST) |
3m x 5m x 9m |
| Room 3 |
3m x 5m x 5m |
Temperature Working Range
| Total temperature range |
-55°C to +50°C |
| Cooling and heating rates |
0.6°C/min (average) 1,2 |
Humidity Working Range
| Temperature range for humidity control |
+10°C to +50°C |
| Humidity range |
10 to 80 % relative humidity2 |
Wind Simulation Fan
| Nozzle outlet velocity |
Max. 80.5 km/h (50 mph) |
| Maximum volumetric flow rate |
Max. approx. 50,000m³/h |
| Temperature range for wind fan operation |
-20 °C to +50 °C |
Rain Simulation System
One mobile rain simulation system is available and can be used in any of the three rooms.
| Flow rate |
Max. 1 litre/min/m2 |
| Coverage area |
3m x 4m |
| Nozzle height |
1500 to 2750mm |
1 without test specimen
2 without thermal load
