Excitation and Acquisition /

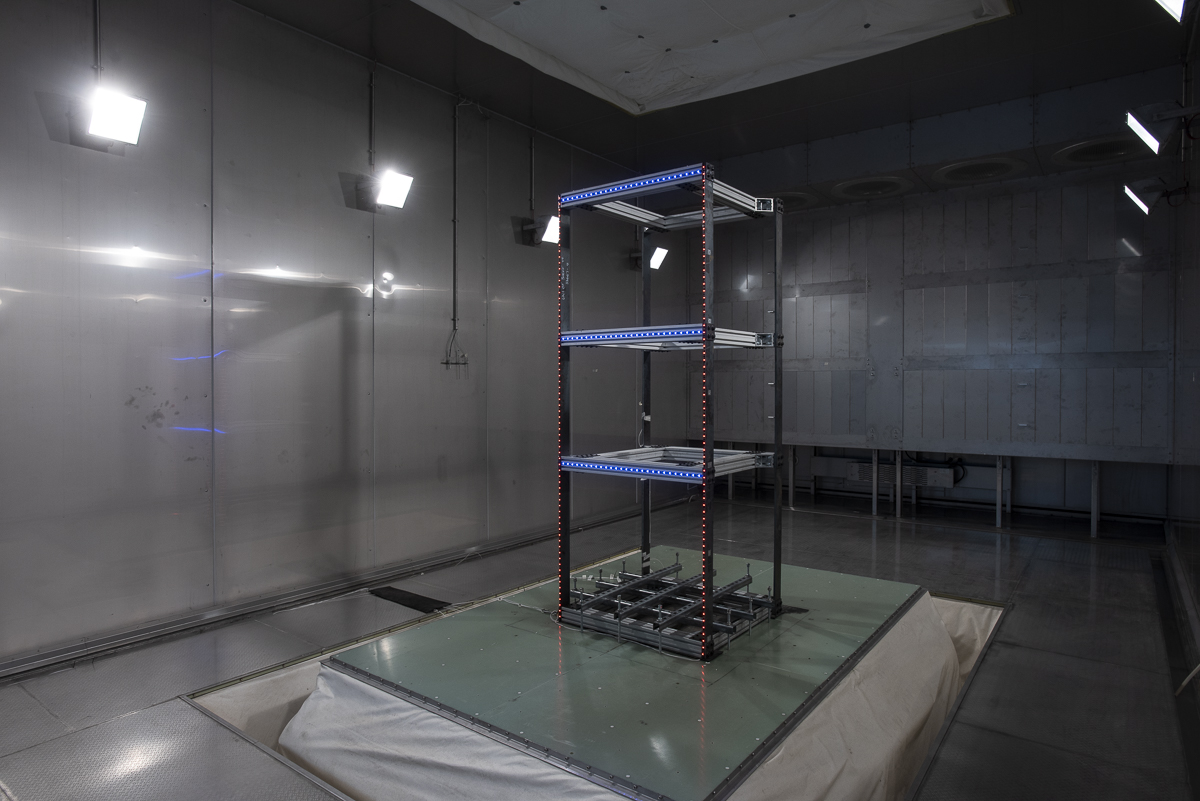

The hydraulic, 6-degree of freedom MAST system is situated 50mm above floor level within climatic test room 2, enabling excitation of large structures at low frequencies. Electrodynamic shakers enable testing at higher frequency ranges both within and outside the climatic test rooms.
Multi-Axis Shaker Table (MAST) System
| Table Dimensions |
3.2m x 2.2m |
| Indicative Performance |
Max. 1000kg at 3g peak acceleration |
| Frequency range |
5-80Hz (x-axis, y-axis)
5-120Hz (z-axis} |
Electrodynamic Shaker: System 1
| Force (sine, peak) |
Max 9.8kN |
| Force (random, peak) |
Max 9.8kN |
| Force (shock, peak) |
Max 19.6kN |
| Frequency range |
DC-4000Hz |
| Max. Acceleration |
100g (no test load) |
| Max. Displacement |
51mm (Peak to Peak) |
Electrodynamic Shaker: System 2
| Force (sine, peak) |
Max 100N |
| Force (random, peak) |
Max 100N |
| Frequency range |
DC-8000Hz |
| Max. Acceleration |
35g (no test load) |
| Max. Displacement |
20mm (Peak to Peak) |
